2PCS 100 Watt Solar Panels, 12 Volt Monocrystalline, High-Efficiency Module PV Power Charger for RV Battery Boat and Other Off-Grid Applications
More Reliable and Higher Efficiency 100W Solar Panel
Since 2010, Renogy has gained rich experience designing and manufacturing the most efficient and robust solar panels and complete off-grid solar systems. Renogy's focus on testing, quality control, and traceability ensures our solar power system offers industry-leading reliability. Invest in yourself by going Renogy. Renogy solar panels will be your most economical long-term investment yet.
Specifications
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Optimum Operating Current (Imp): 4.91A
Short-Circuit Current (Isc): 5.21A
Maximum Series Fuse Rating: 15A
Operating Temperature: -40°F to 176°F
Product Dimensions: 41.8 x 20.9 x 1.4 in
Product Weight: 14.1 lbs / 6.4 kg
Output Cables: 14 AWG (2ft long)
What Makes A Great Solar Panel - Grade A+ Solar Cells
* Solar cells are the most fundamental yet crucial component of a solar panel. They can determine whether a solar panel is highly efficient or not.
* All of Renogy's solar panels use flawless Grade A+ solar cells.
The advantages of Grade A+ solar cells:
1. No visible defects.
2. All the electrical data are in spec.
3. Passes the strict EL test without any microcracks.
* Grade B and C solar cells are inferior to Grade A+.
1. They have visible defects, such as color deviation, paste leakage, large bend, chipped cell, corner breakage, busbar missing, missing print, and watermark. All of these defects can lead to lower conversion efficiency and even a broken solar panel.
2. Lots of microcracks would appear after the EL test.
|
|
|
|
|---|---|---|

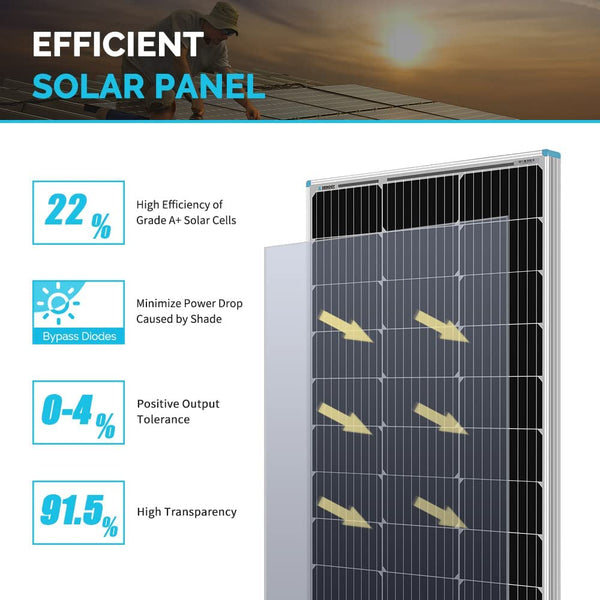

Higher EfficiencyRenogy uses an anti-reflective, low iron-tempered glass on top, with high transparency of up to 91.5%. Compared with conventional solar panels, it allows more direct sunlight to be converted to electrical power. |
Reliable & DurableThis Renogy solar panel is made of advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing lasting solar panel durability. |
Pre-Drilled Holes for Easy InstallationComes with pre-drilled holes, including ground mounting holes for fast and convenient installation. Compatible with Renogy Z Brackets, Corner Brackets, Pole Mounts and Tilt Mounts. |
|
|
|
|
|---|---|---|
Rugged Aluminum FrameCorrosion-resistant aluminum frame design with sturdy corner supports ensures that it endures the outdoors for an extended period of time without damage or loss of performance. |
IP67 Solar ConnectorsNo need to worry about bad weather. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in. Perfect for your yacht and marine applications. |
IP65 Junction BoxComplete protection against environmental particles and low-pressure water jets. |
- Reliable Power Output - 100 watt solar panels can provide an average of 400-500 Watt-hours (Wh) or 33-41Amp-hours (Ah) of electricity per day (depending on sun availability).
- Efficient Performance - Bypass diodes of this solar panel protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.
- Industry-Leading Technology - This 100w solar panel is made from high purity silicon cells coated with advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide long-lasting durability.
- Built to Last - Corrosion-resistant aluminum frame of this 100 watt solar panel 12v provides extended outdoor use that ensures the panel can last for decades. The IP65-rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.
- Fast and Easy Installation - Pre-drilled holes on the back of the solar panel kit allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.
